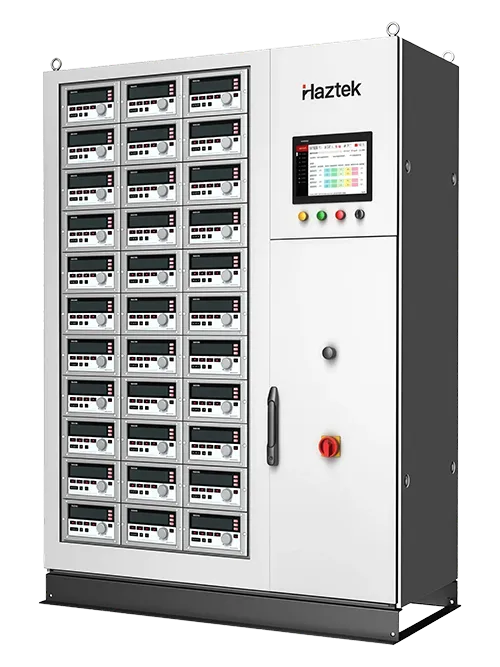

Automatic Powder Coating System for Powder Coating Equipment, GC20A
Output Voltage 100kV
Input Pressure 5.5-6bar
Maximum Powder Output 420g/min

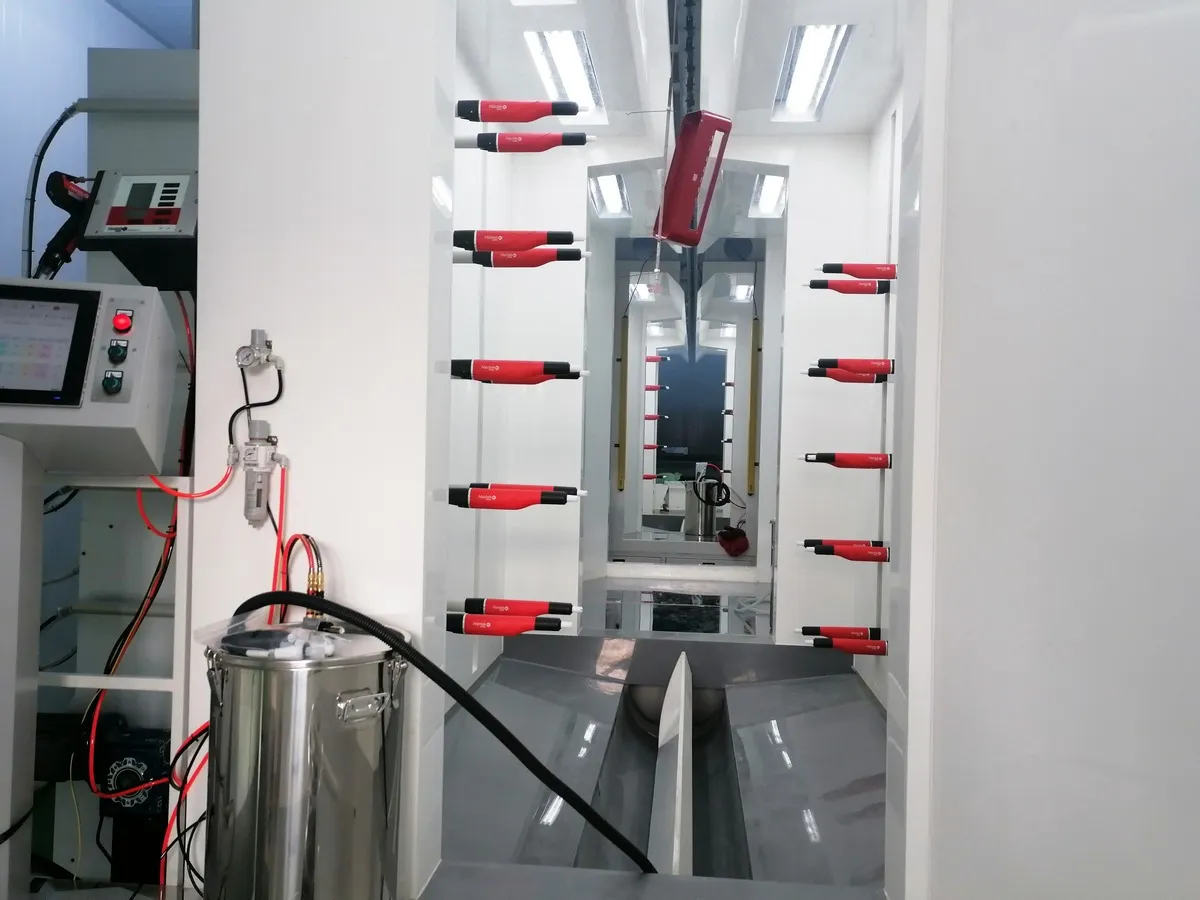

The automatic powder coating system for powder coating equipment, GC20A integrates the CoatPilot® coating management system, transforming the traditional single-gun control approach into intelligent coordination for large-scale spray gun groups. It combines high production safety, open communication interfaces, and efficient material savings, making it a core coating unit for building modern smart factories.
Our customized powder coating service covers the full process from requirement analysis and solution design to equipment maintenance. Based on the characteristics and production needs of different industries such as home appliances, building materials, aluminum processing, defense and heavy industry, construction machinery, MDF furniture, and new energy vehicles, Haztek provides complete, efficient, and intelligent coating line solutions tailored to your project. From plant layout and equipment selection to process design and automation integration, the system supports a one-stop turnkey coating solution.

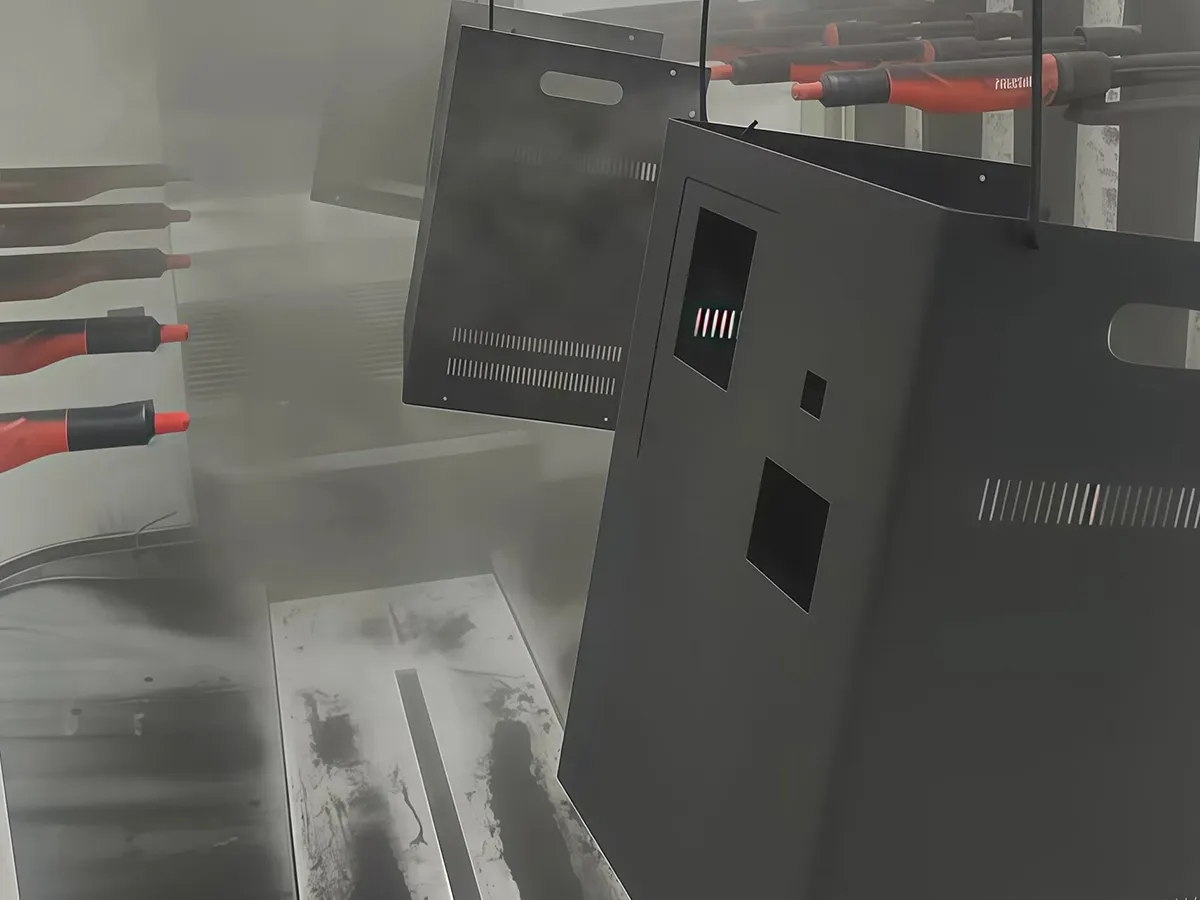

Powder Coating of Electrical Cabinets and Enclosures
Powder Coating Line for Doors and Windows

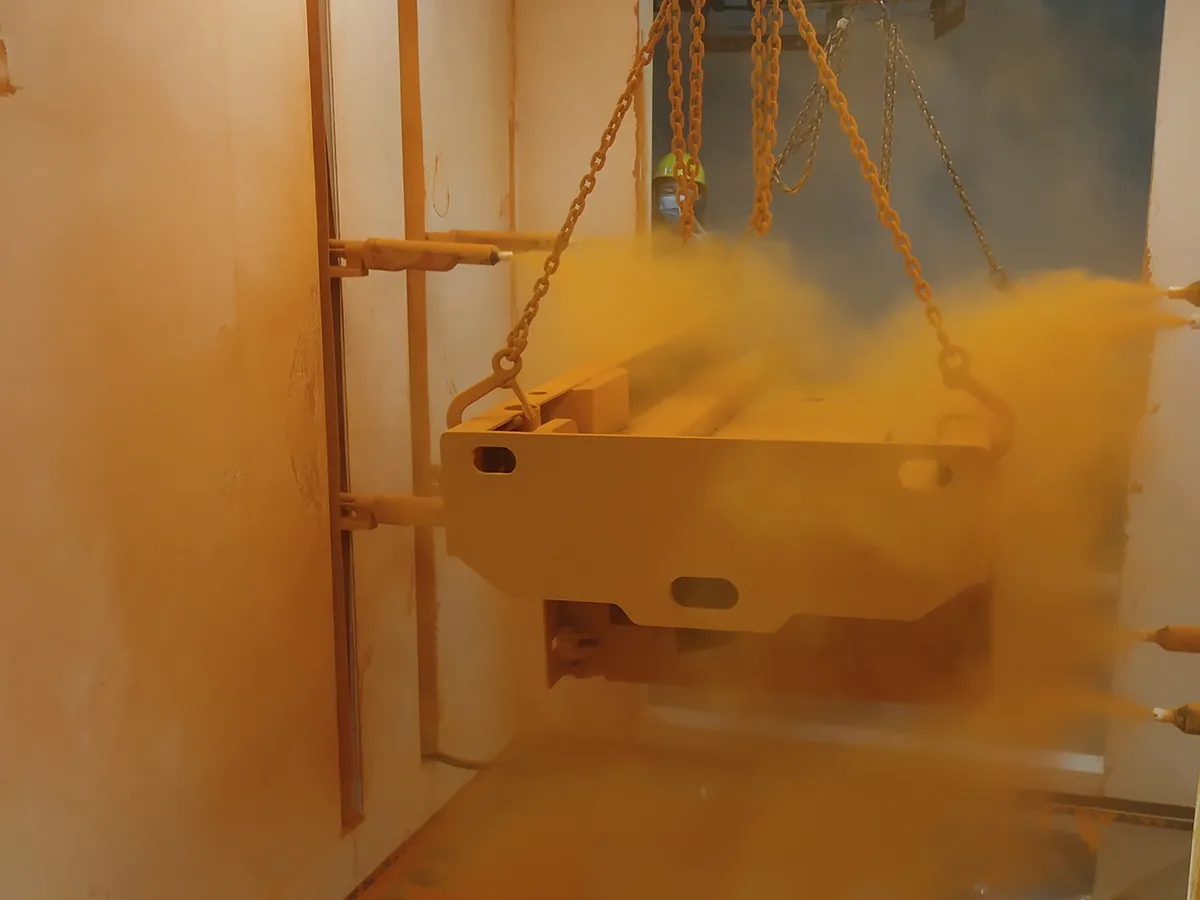

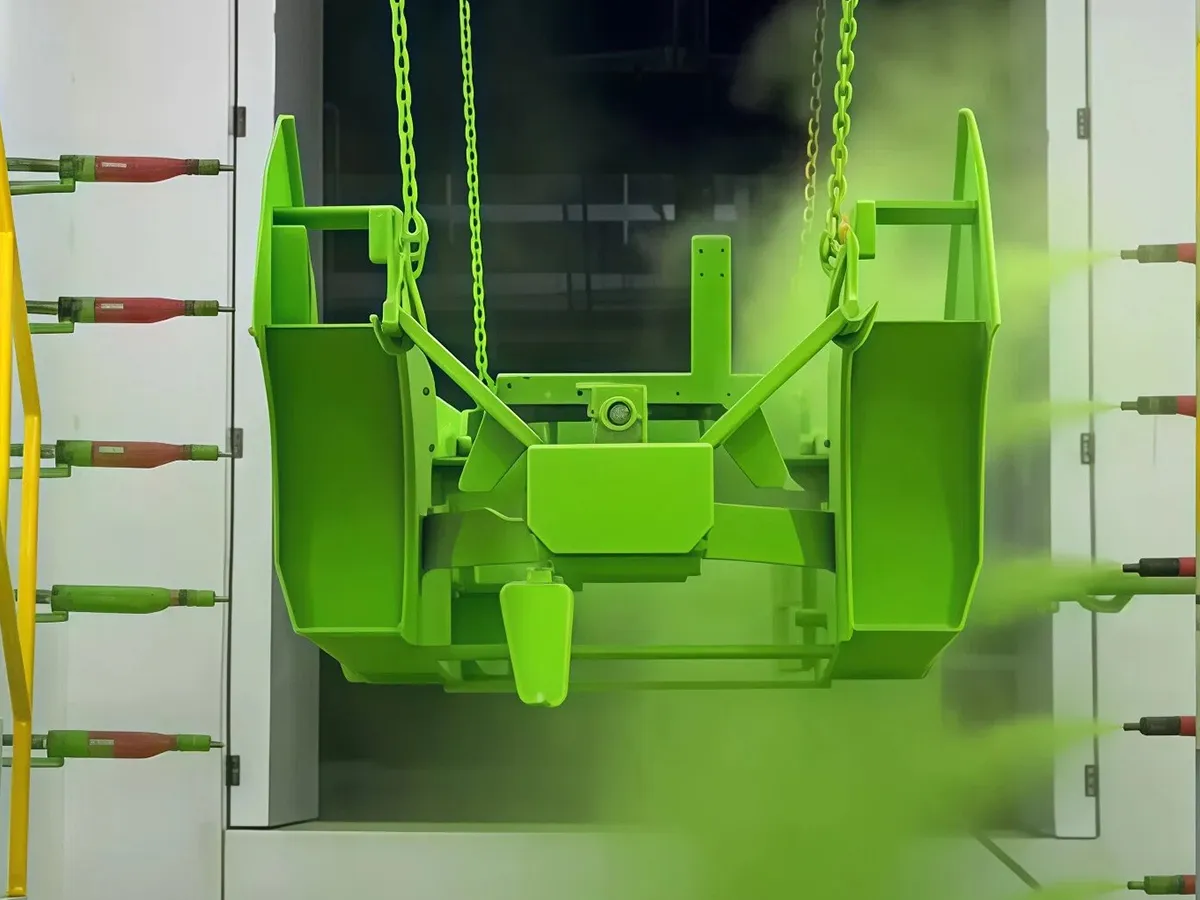

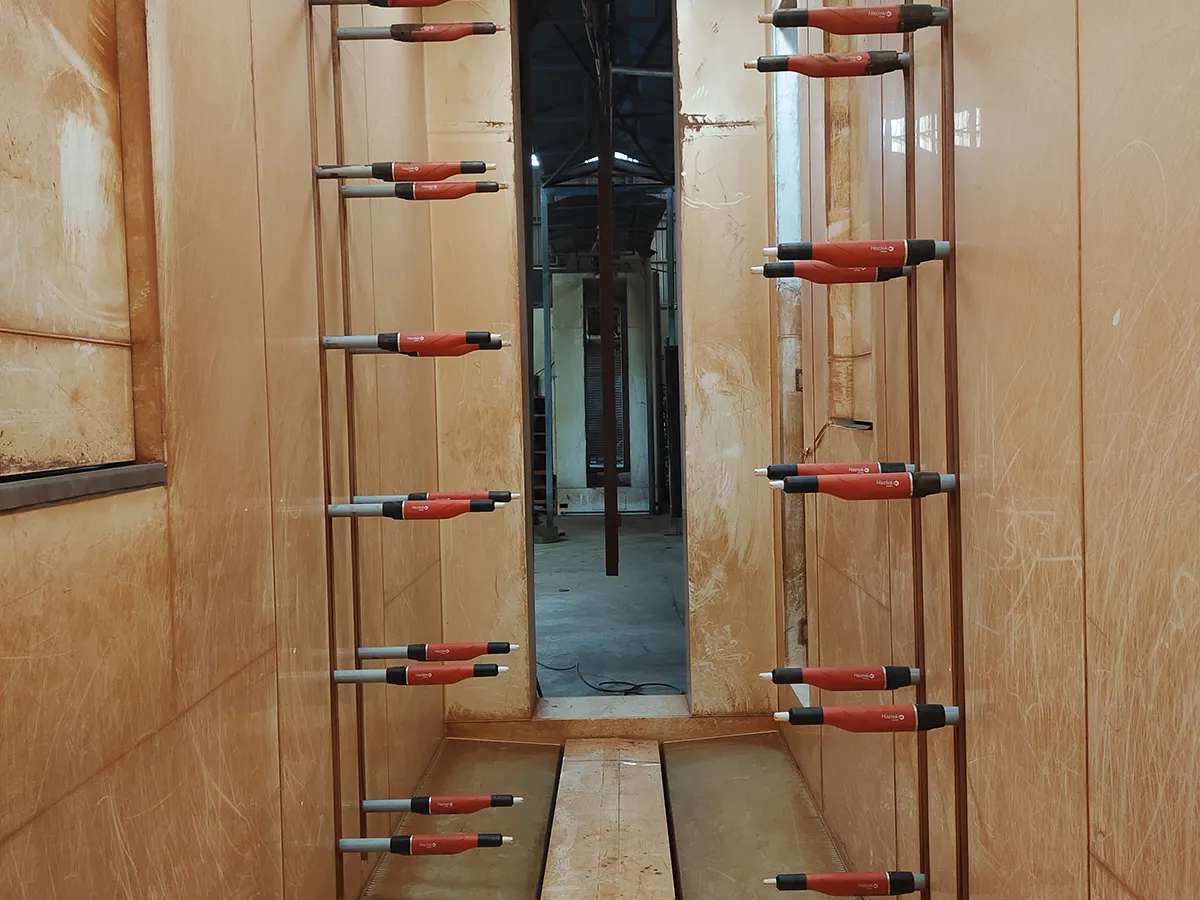

Powder Coating of Extra-Heavy Workpieces

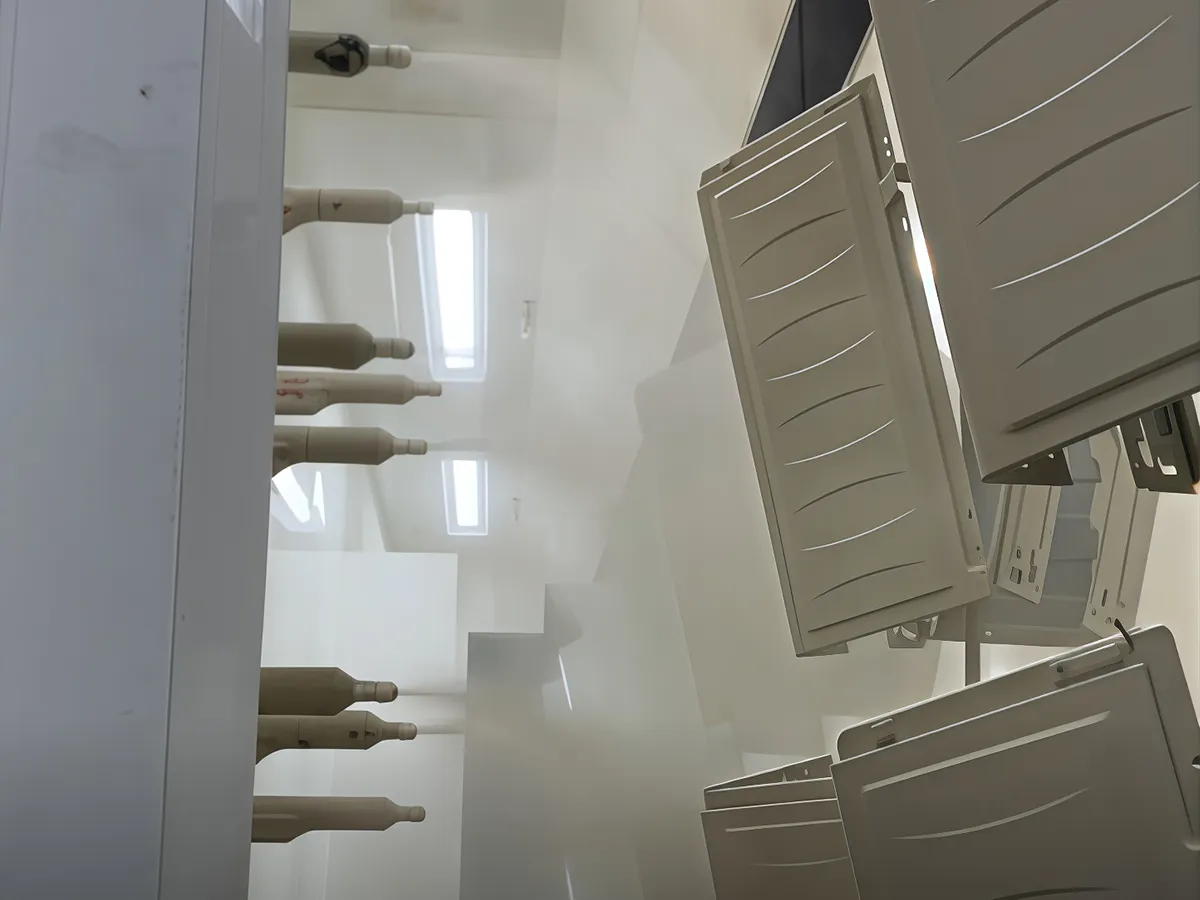

Powder Coating of Home Appliance Housings
Powder Coating of Hardware Furniture

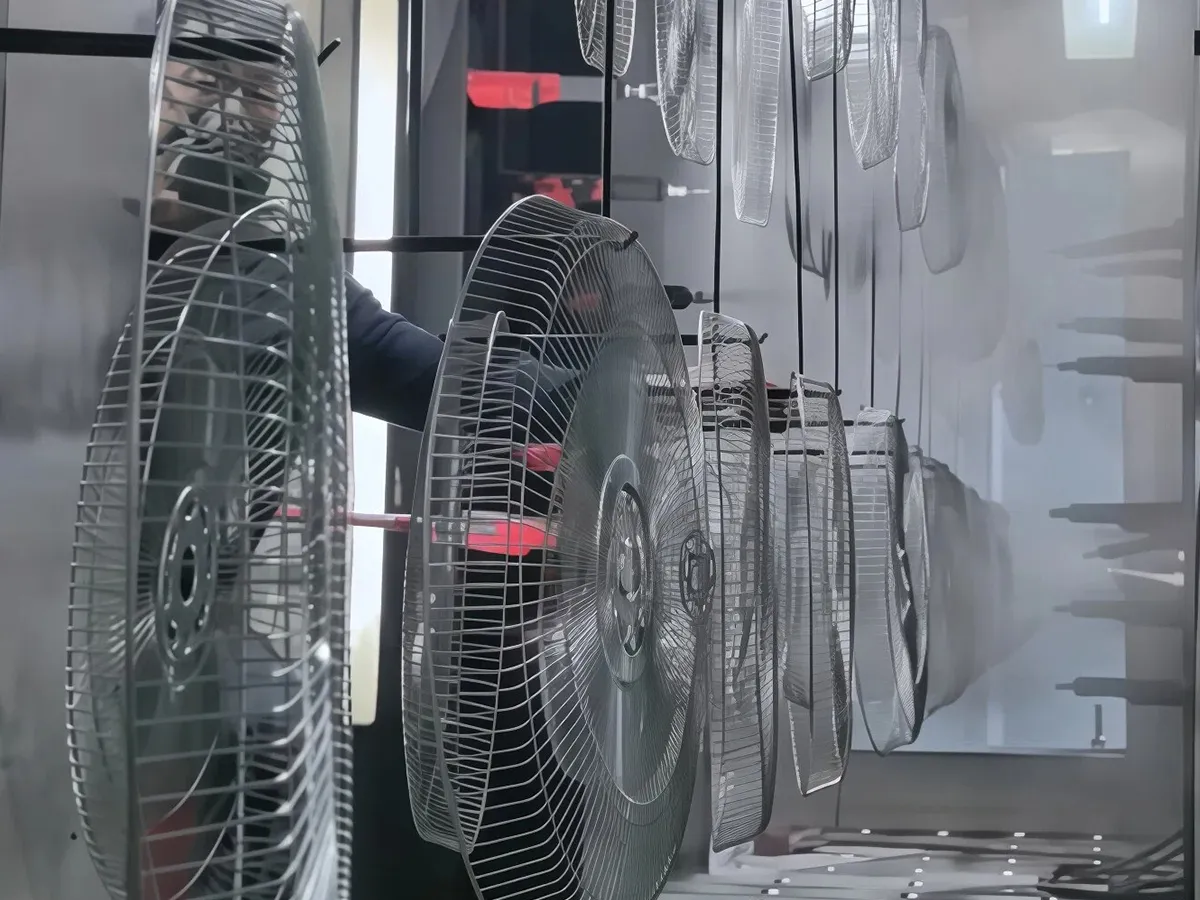

Powder Coating of Fan Guard Covers
Powder Coating of Long Aluminum Profiles
Technical Parameters
Standard input voltage
100–240 VAC
Maximum air consumption
8.5 Nm³/h
Frequency
50–60 Hz
Communication protocol
CANopen
Standard output voltage (to spray gun)
12 V
External control (workpiece recognition system)
Support
Maximum output current (to spray gun)
1.2 A
Metal powder
Yes
Maximum spray gun output voltage
100 kV
Other polyester powder
Yes
Maximum spray gun output current
100 μA

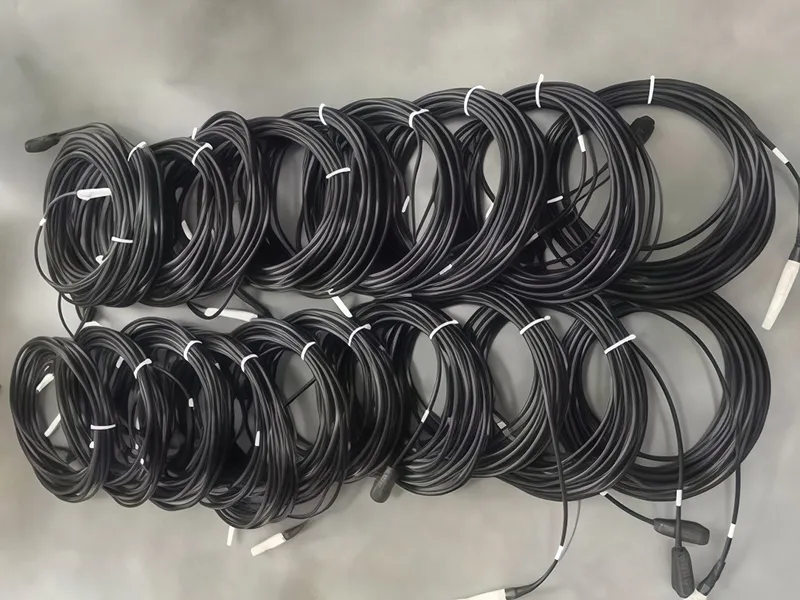

Powder hose length
16m/20m, or configured according to specific project requirements
Polarity
Negative electrode
Powder hose diameter
11 × 17 mm / 12 × 18 mm (optional)
Protection level
IP54
Powder hose material
POE with conductive strip
Temperature range
-40°C to 85°C
Maximum powder discharge rate
420 g/min
Output pressure
5.5–6.5 bar
-
-
System Components
This system mainly includes the GC20A controller, AG20 automatic electrostatic powder spray gun, dust-proof electrical cabinet (IP54), PPH40 powder pump, management system, and Nozzles & Spare Parts.

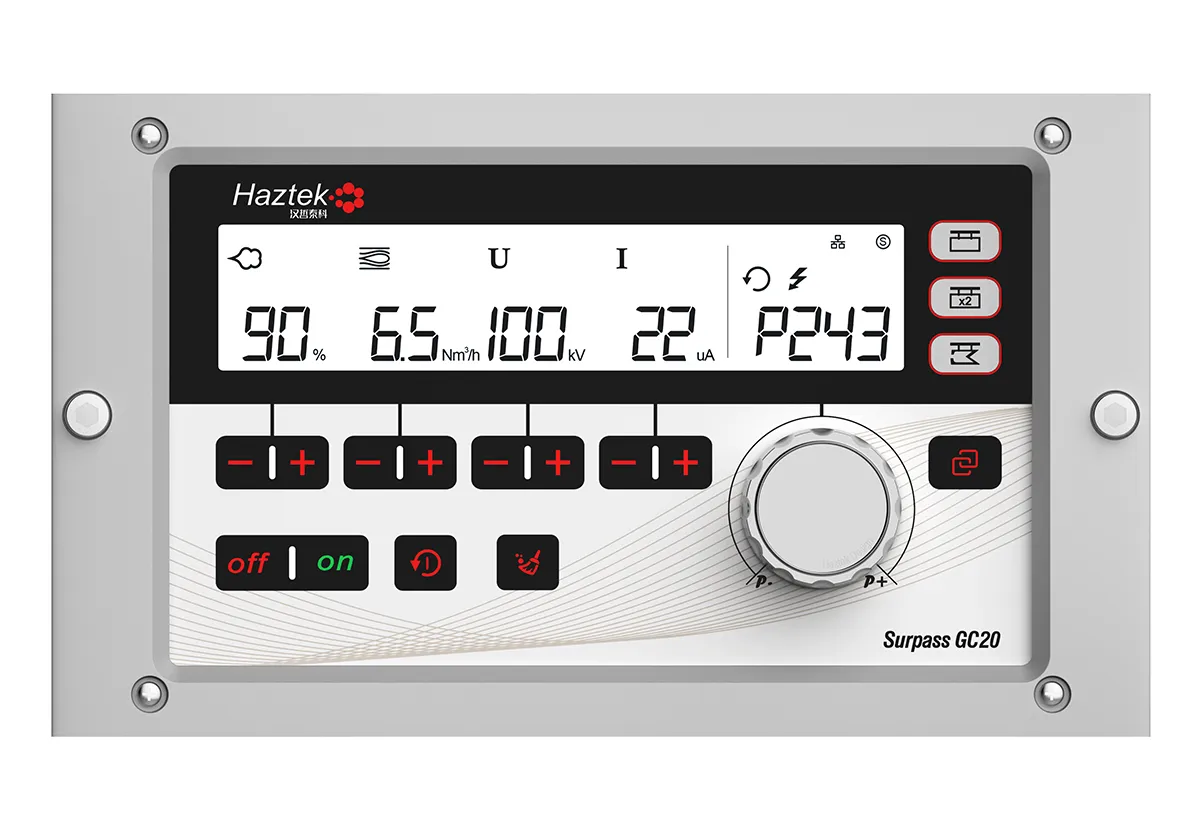

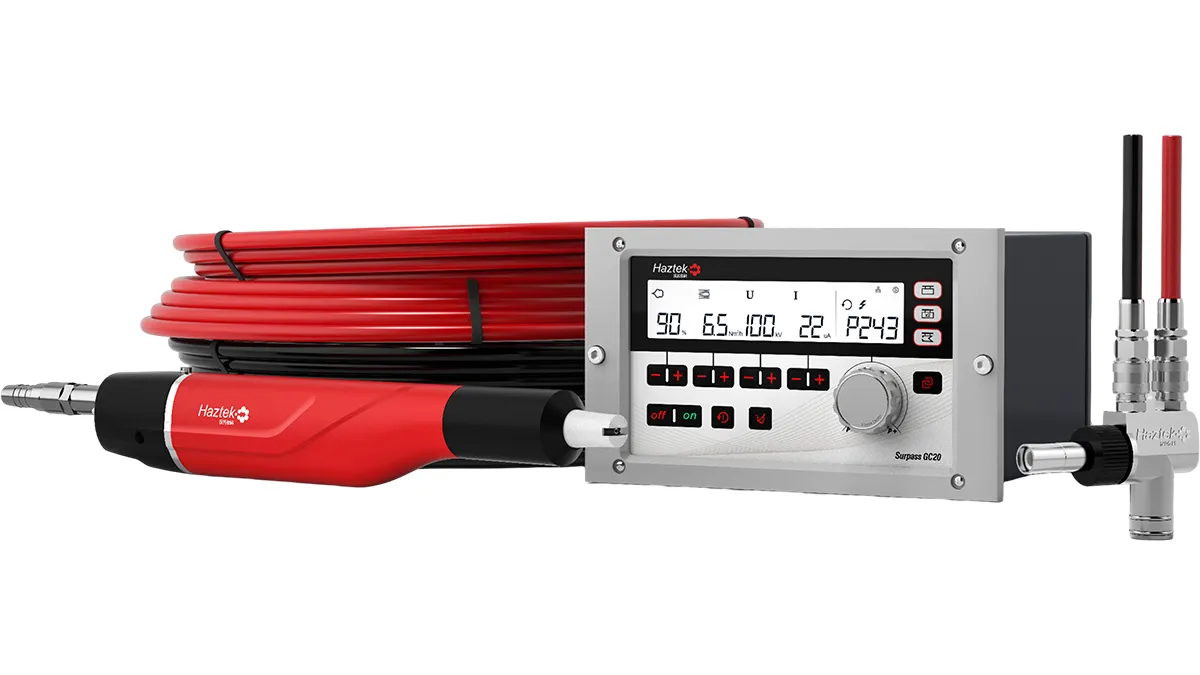

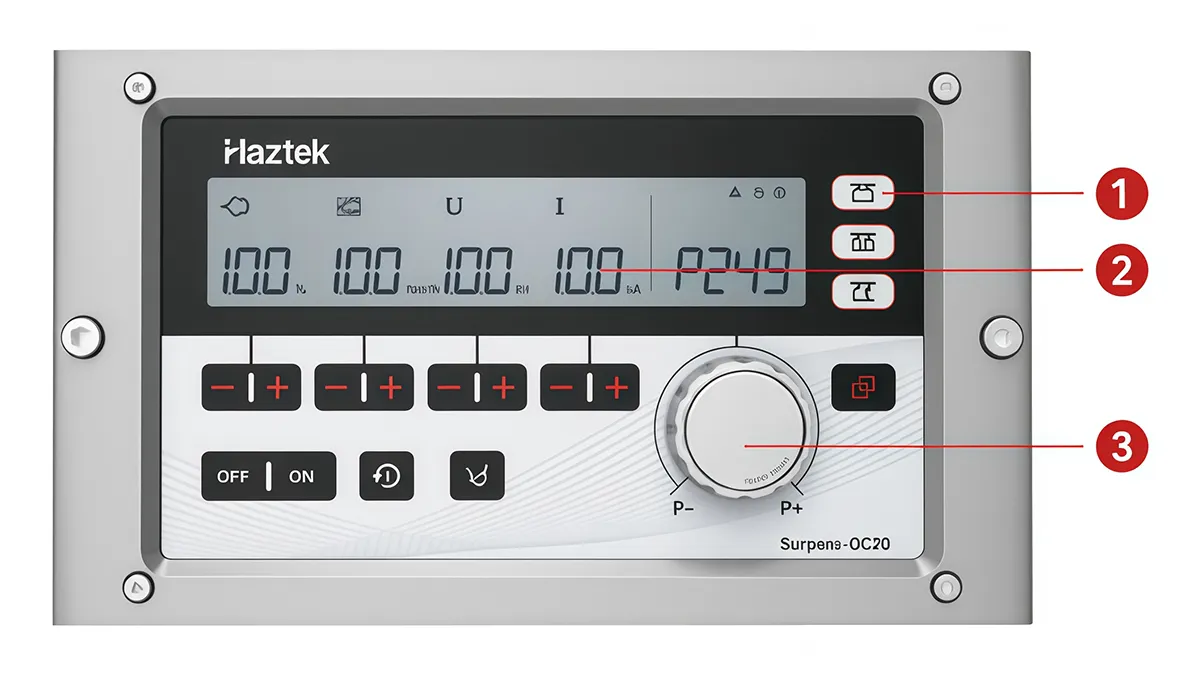

GC20A Automatic Spray Gun Controller
Button 1: Three daily quick programs for new parts, complex recessed parts, and back spray parts
Button 2: Touchscreen display for fast selection of the current control item, used together with a stepless adjustment knob
Button 3: supports real-time parameter adjustment
Features
Stable Airflow and Pressure Control:
The GC20A automatic spray gun controller is equipped with DVC digital valve technology and PCC precise current control, helping maintain stable airflow and pressure during the coating process. It also provides precise current adjustment below 10 µA, preventing powder overcharging and improving coating stability and quality.
Programmable Coating Programs:
The GC20A controller supports up to 20 programmable coating programs, and each parameter group can be saved automatically for future use.
Open Communication and Connectivity:
It is equipped with a CANOpen communication module and provides an EDS file, offering strong support for secondary development and equipment connectivity.
Self-Diagnosis and One-Touch Cleaning:
The system features built-in self-diagnosis and one-touch cleaning. It can automatically detect operating status, identify issues in time, and simplify spray gun cleaning and maintenance to improve color change efficiency.
Controller Parameters
Item
Specification
Standard input voltage
100–240 VAC
Frequency
50–60 Hz
Standard output voltage (to spray gun)
12 V
Maximum output current (to spray gun)
1.2 A
Protection level
IP54
Temperature range
-40°C to 85°C
Output pressure
5.5–6.5 bar
Maximum air consumption
8.5 Nm³/h

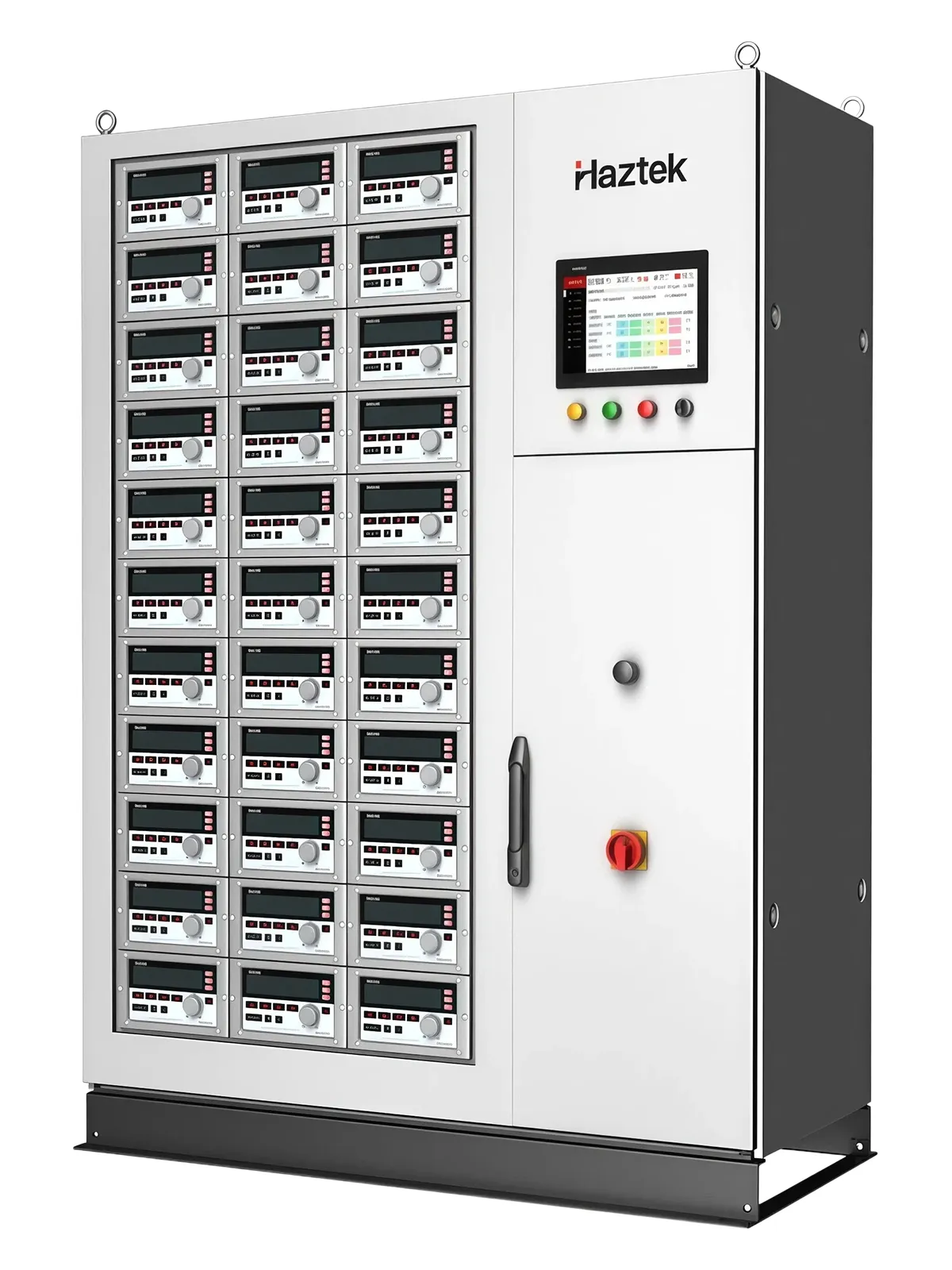

Dust-Proof Electrical Cabinet
The dust-proof electrical cabinet uses a multi-sealing design, including silicone rubber sealing rings and sealed connectors, to achieve IP54 protection. It helps prevent the ingress of dust, moisture, and corrosive substances, making it suitable for demanding industrial environments.

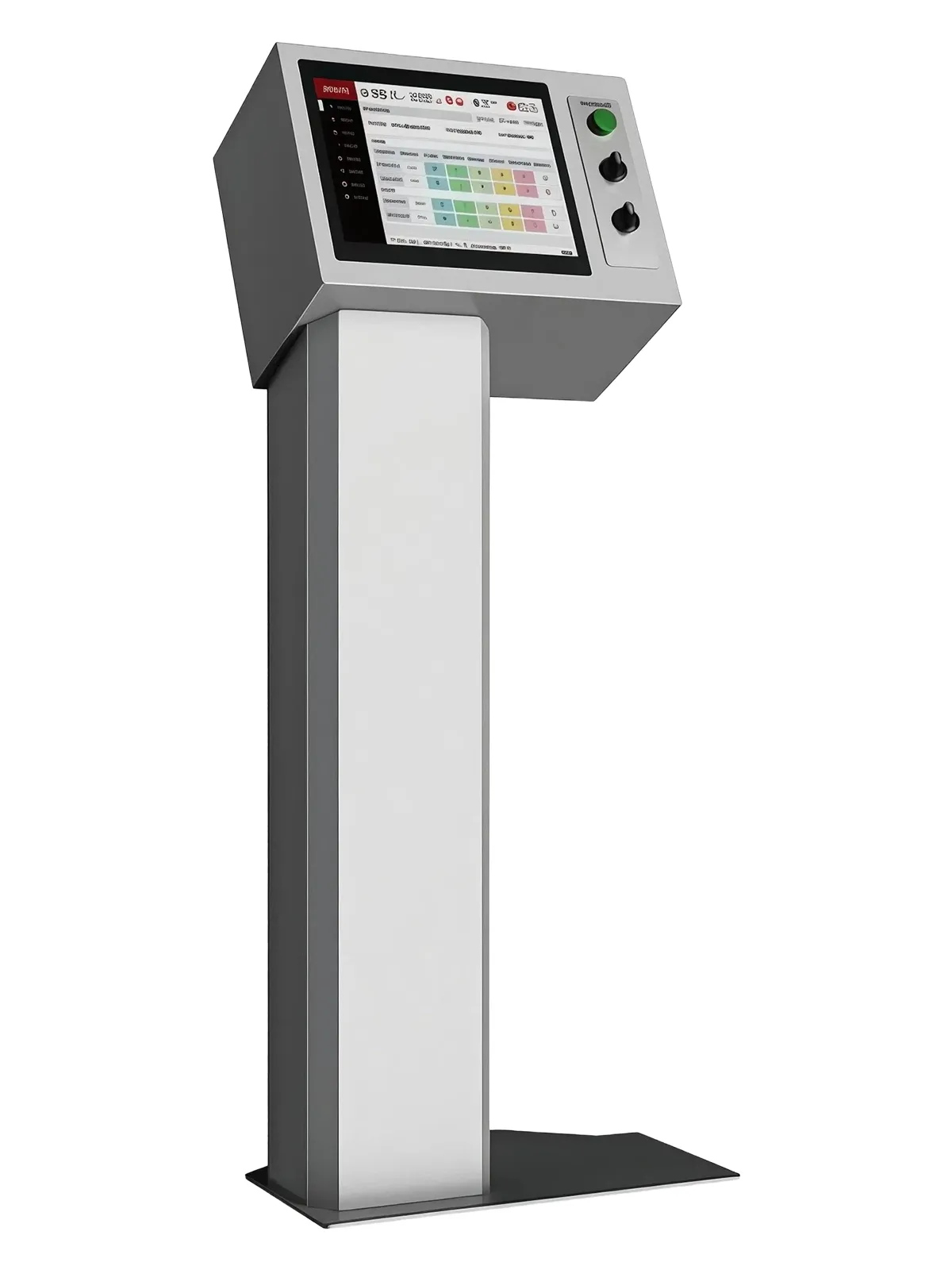

CoatPilot Coating Management System
The GC20NA-C controller and GC20A controller can be expanded with the CoatPilot coating management system to achieve centralized management of large spray gun groups.
Features
Simplified handling of complex processes Global modular management allows process parameters to be deployed quickly across a wide range of workpiece types, improving changeover efficiency and making repeatable quality easier to achieve.
Simple, safe, and fast operation A 12-inch multi-touch display is used to control the entire coating process. With intuitive options, clear visual icons, and visible parameter settings, machine status can be checked at a glance.
Open integration with third-party systems The CoatPilot system is designed with strong openness and compatibility. It can be integrated into your production environment through ERP, MES, and other third-party system APIs, helping create a more powerful and connected automated manufacturing system.

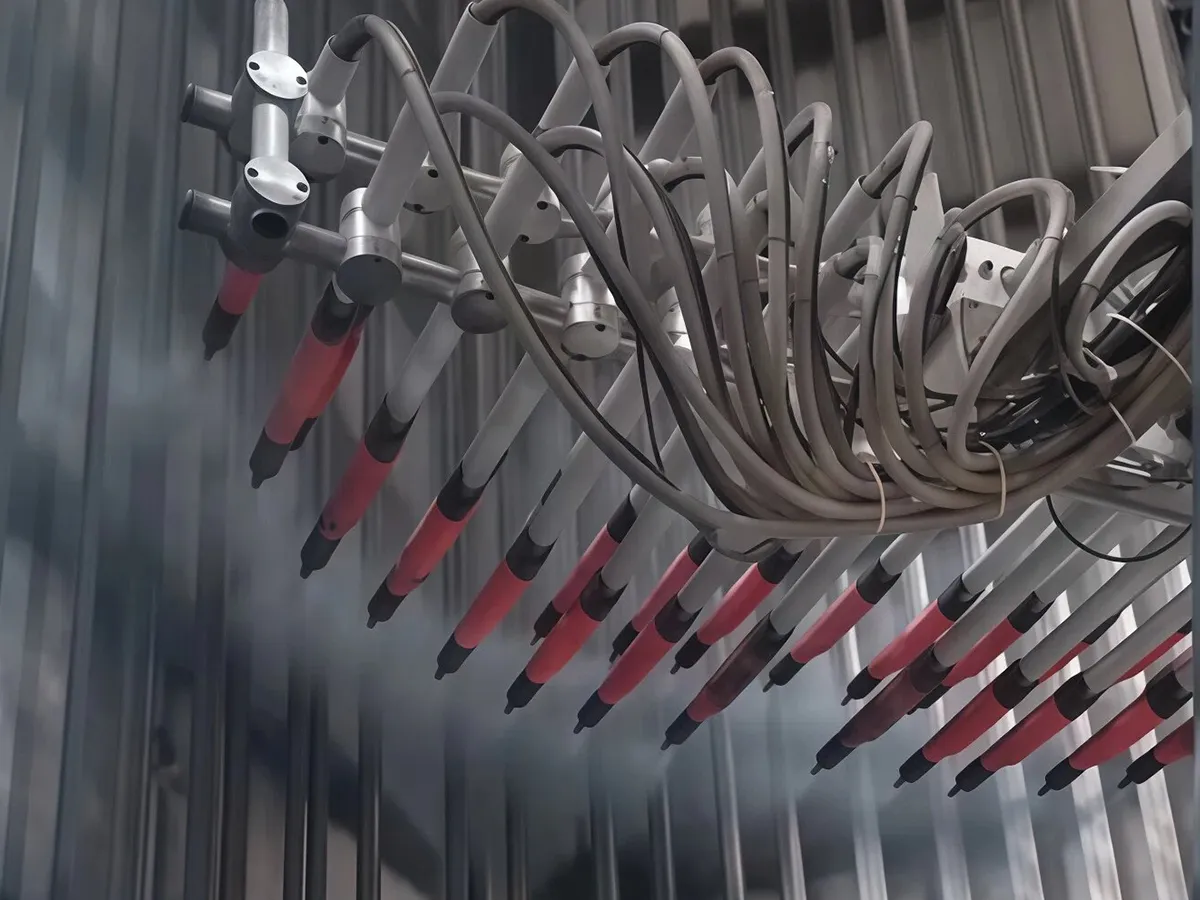

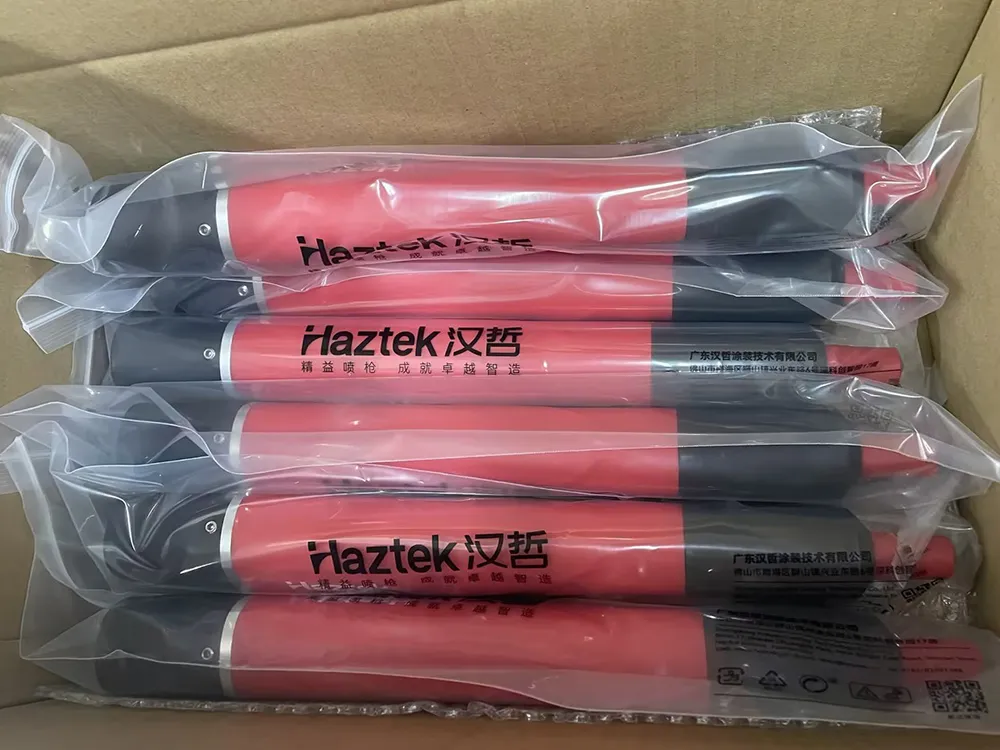

AG20 Automatic Spray Gun
The AG20 automatic spray gun features a built-in 100 kV high-performance voltage multiplication module, ensuring stable output and high powder transfer efficiency. The electrode needle adopts a three-stage air intake design that helps keep the needle tip clean, effectively prevents powder buildup, and maintains strong electrostatic release performance.
It is suitable for most commonly used powders, including metal powders and various polyester powders. With precise voltage and current control together with a modular structure design, the AG20 delivers reliable and uniform coating quality on flat parts, recessed areas, and irregular workpieces.
Two installation options are available

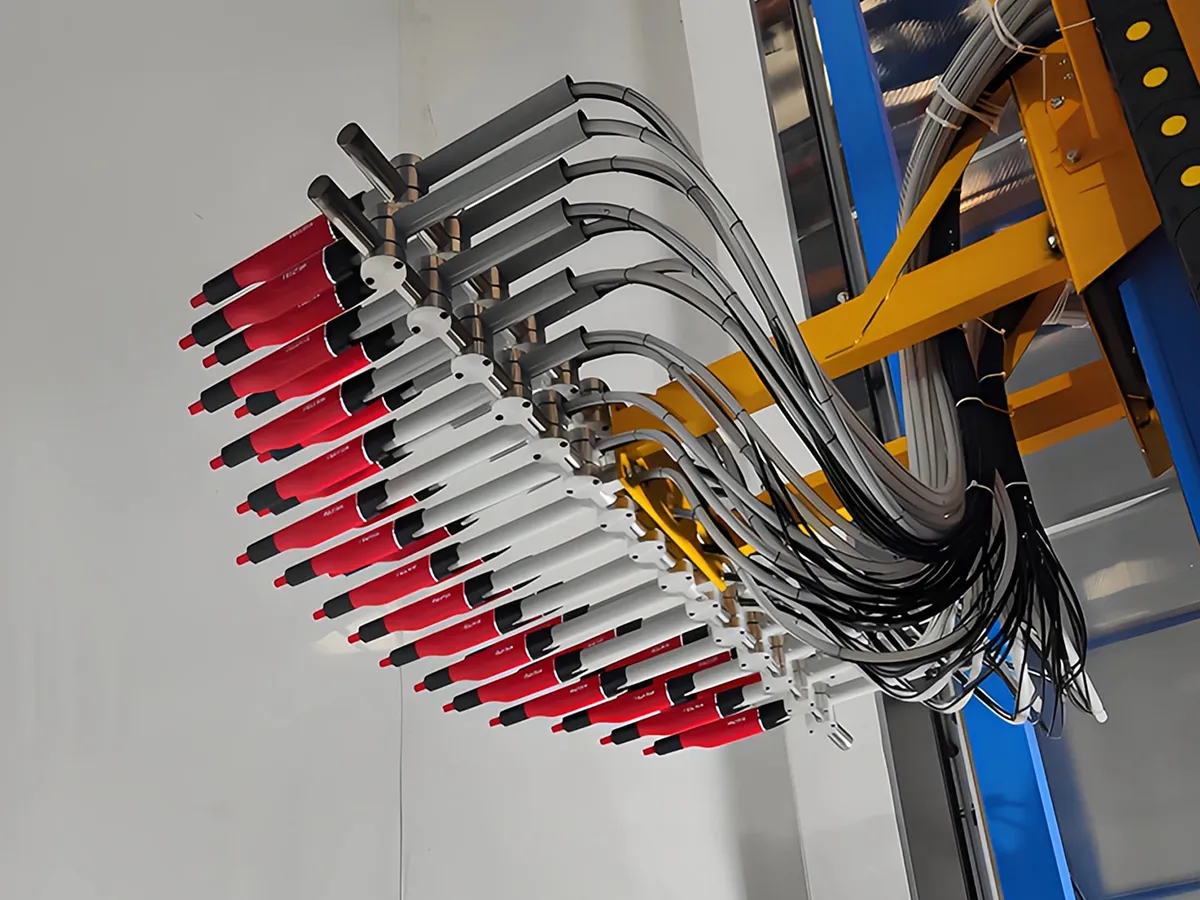

Integrated extension rod mounting
The cable is enclosed inside the tube structure, providing better sealing performance. This design helps reduce dust accumulation and effectively minimizes dust interference and aging.
Base mounting
Easy to install, simple to maintain, and cost-effective.

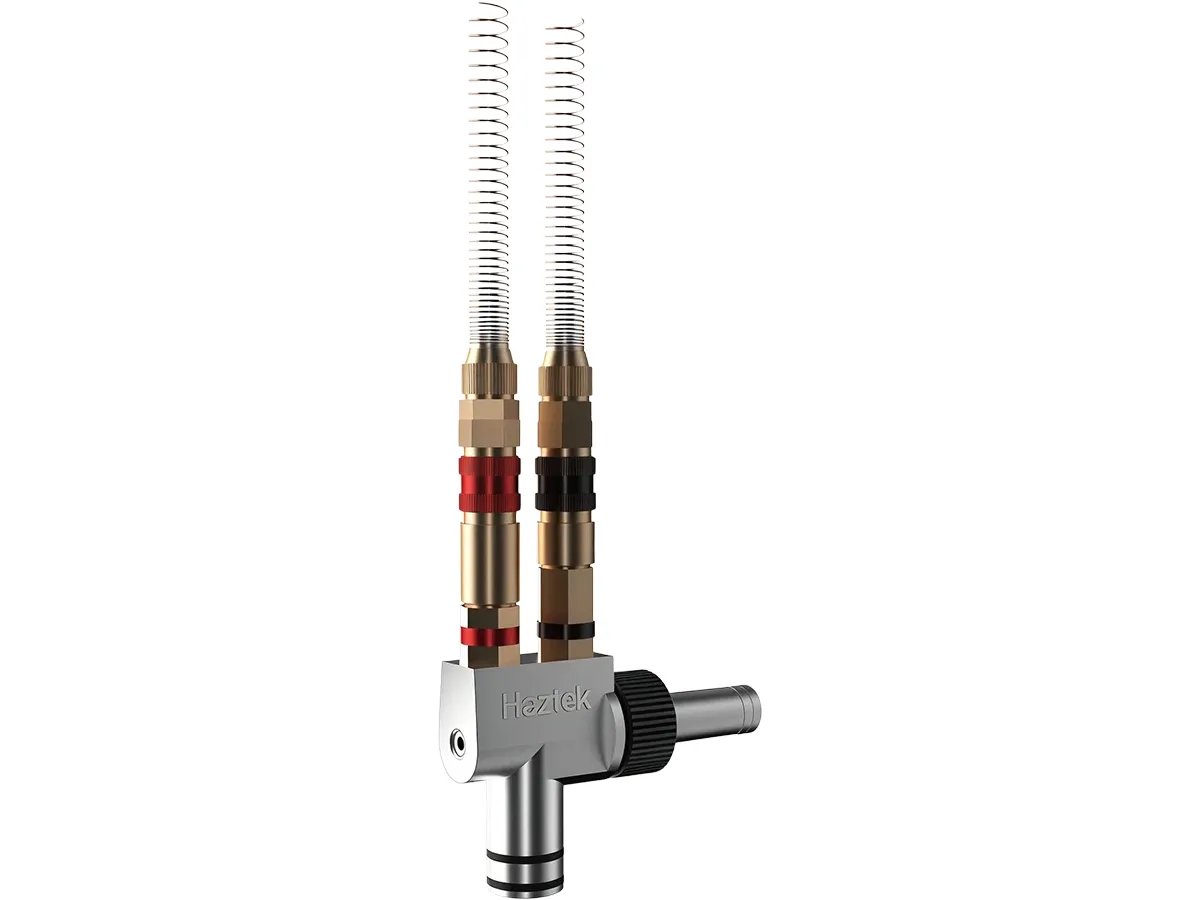

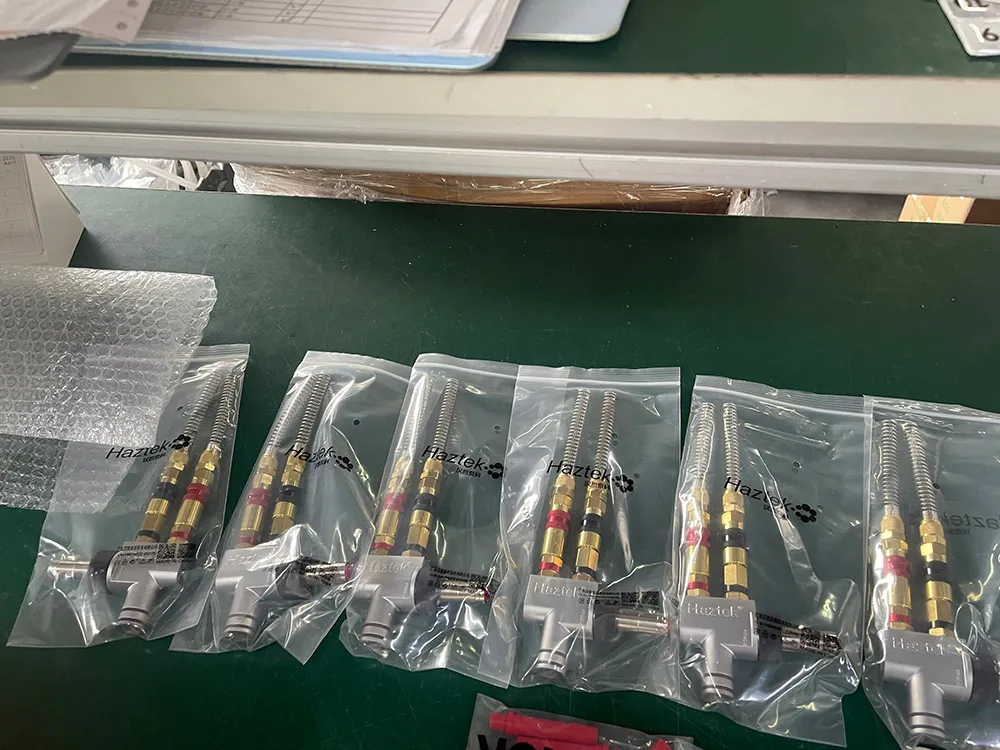

PPH40 Powder Pump
Suitable for fast color change and quick cleaning, the PPH40 powder pump features a plug-and-play design for fast installation, fast color change, and quick cleaning. Its quick-connect powder hose structure makes hose disassembly and reconnection easier during cleaning. The venturi tube is made of high-quality non-stick material and is equipped with a quick connector for compressed air. It provides stable and even powder feeding with excellent atomization, helping produce high-quality coatings. The maximum powder output can reach 520 g/min, depending on the actual configuration and powder type.
